Kutchina Florenze

KUTCHINA CHIMNEY MODEL : FLORENZE

Features

Layout: SIDE (3 ft)
Suction ( m3/h ):1200±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications

Layout : Side (3 ft)
Body : MS
Size : 90 Cm
Voltage : (V)AC220-240V
Rated Motor Power : (W)1 X 175W
Illumination type : LED Lamp
Illumination Power : 2 X max 2W
Auto Clean type : DRY, 3rd Generation
Autoclean Power : (W)75 W
Total Power : ( W )269 W
Suctuion : ( m3/h )1200±50m³/Hr
Noise Level : ( dBA)56 Db
Speed Control : 3
Switch Control : Touch Control
Outlet Diameter : (mm)150 mm
Unit Dimension(mm) : L900 x W430 x H1130mm

BOOK DEMO NOW! CALL 9038728376

Kutchina Isle

KUTCHINA CHIMNEY MODEL : ISLE

Features

Layout: HOOD (3 ft)
Suction ( m3/h ):1200±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications

Layout : Hood (3 ft)
Body : MS
Size : 90 Cm
Voltage : (V)AC220-240V
Rated Motor Power : (W)1 X 250W
Illumination type : LED Lamp
Illumination Power : 4 X max 2W
Auto Clean type : DRY, 3rd Generation
Autoclean Power : (W)75 W
Total Power : ( W )333 W
Suctuion : ( m3/h )1200±50m³/Hr
Noise Level : ( dBA)56 Db
Speed Control : 2
Switch Control : Touch Control
Outlet Diameter : (mm)150 mm
Unit Dimension(mm) : L900 x W700 x H600mm

BOOK DEMO NOW! CALL 9038728376

Kutchina Eiffel

KUTCHINA CHIMNEY MODEL : EIFFEL

Features

Layout: HOOD (3 ft)
Suction ( m3/h ):1600±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications

Layout : Hood (3 ft)
Body : SS
Size : 90 Cm
Voltage : (V)AC220-240V
Rated Motor Power : (W)1 X 200W
Illumination type : LED Lamp
Illumination Power : 2 X max 2W
Auto Clean type : DRY, 3rd Generation
Autoclean Power : (W)100 W
Total Power : ( W )304 W
Suctuion : ( m3/h )1600±50m³/Hr
Noise Level : ( dBA)60 Db
Speed Control : 2
Switch Control : Touch Control
Outlet Diameter : (mm)160 mm
Unit Dimension(mm) : L900 X W500 X H600mm

BOOK DEMO NOW! CALL 9038728376

Kutchina Elizza

KUTCHINA CHIMNEY MODEL : ELIZZA

Features

Layout: HOOD (3 ft)
Suction ( m3/h ):1200±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications

Layout : Hood (3 ft)
Body : MS
Size : 90 Cm
Voltage : (V)AC220-240V
Rated Motor Power : (W)1 X 280W
Illumination type : fluorescent Lamp
Illumination Power : 1 X max 8W
Auto Clean type : DRY, 3rd Generation
Autoclean Power : (W)34 W
Total Power : ( W )322 W
Suctuion : ( m3/h )1600±50m³/Hr
Noise Level : ( dBA)56 Db
Speed Control : 2
Switch Control : Touch Control
Outlet Diameter : (mm)170 mm
Unit Dimension(mm) : L900 x W510 x H635mm

BOOK DEMO NOW! CALL 9038728376

Kutchina Chimney KUTCHINA CHIMNEY MODEL : s & Specifications [Sales Support : 9038728376 / 9051666255]

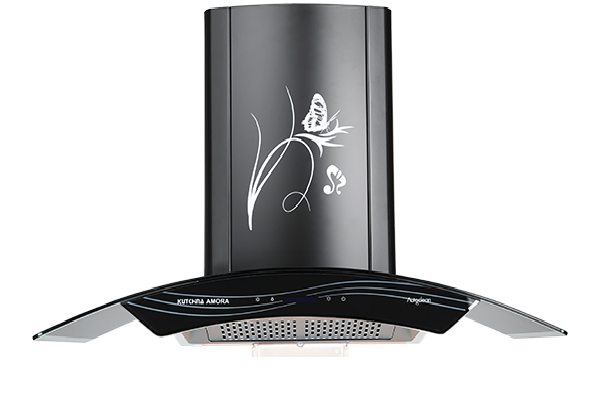

Kutchina AMORA

KUTCHINA CHIMNEY MODEL : AMORA

Features

Layout: HOOD (3 ft)
Suction ( m3/h ):1200±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications

Layout : Hood (3 ft)
Body : MS
Size : 90 Cm
Voltage : (V)AC220-240V
Rated Motor Power : (W)1 X 200W
Illumination type : LED Lamp
Illumination Power : 2 X max 2W
Auto Clean type : DRY, 3rd Generation
Autoclean Power : (W)34 W
Total Power : ( W )216 W
Suctuion : ( m3/h )1200±50m³/Hr
Noise Level : ( dBA)46 Db
Speed Control : 3
Switch Control : Touch Control
Outlet Diameter : (mm)160 mm
Unit Dimension(mm) : L900 x W500 x H600mm

BOOK DEMO NOW! CALL 9038728376

kutchina Arc

KUTCHINA CHIMNEY MODEL : ARC

Features

Layout: HOOD (3 ft)
Suction ( m3/h ):1400±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications

Layout : Hood (3 ft)
Body : MS
Size : 91 Cm
Voltage : (V)AC220-240V
Rated Motor Power : (W)1 X 250W
Illumination type : Incandescent Lamp
Illumination Power : 2 X max 25W
Auto Clean type : DRY, 3rd Generation
Autoclean Power : (W)100 W
Total Power : ( W )400 W
Suctuion : ( m3/h )1400±50m³/Hr
Noise Level : ( dBA)56 Db
Speed Control : 2
Switch Control : Push Button
Outlet Diameter : (mm)150 mm
Unit Dimension(mm) : L910 X W560 X H370mm

BOOK DEMO NOW! CALL 9038728376

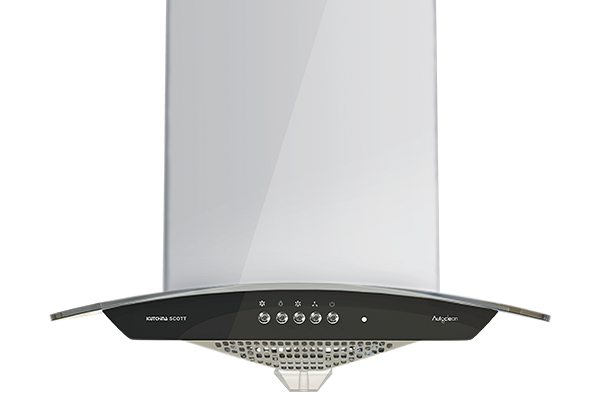

Kutchina Scott

KUTCHINA CHIMNEY MODEL : SCOTT

Features

Layout: HOOD (2 ft)
Suction ( m3/h ):1000±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications

Layout : Hood (2 ft)
Body : MS
Size : 60 Cm
Voltage : (V)AC220-240V
Rated Motor Power : (W)1 X 200W
Illumination type : fluorescent Lamp
Illumination Power : 2 X max 15W
Auto Clean type : DRY, 3rd Generation
Autoclean Power : (W)80 W
Total Power : ( W )310 W
Suctuion : ( m3/h )1000±50m³/Hr
Noise Level : ( dBA)56 Db
Speed Control : 2
Switch Control : Push Button
Outlet Diameter : (mm)160 mm
Unit Dimension(mm) : L600 X W500 X H550mm

BOOK DEMO NOW! CALL 9038728376

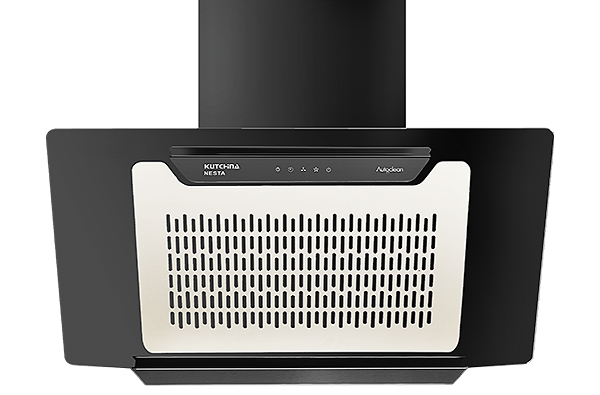

Kutchina Nesta

KUTCHINA CHIMNEY MODEL : NESTA

Features

Layout: HOOD (2.5 ft)
Suction ( m3/h ):1200±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications

Layout : Hood (2.5 ft)
Body : MS
Size : 75 Cm
Voltage : (V)AC220-240V
Rated Motor Power : (W)1 X 200W
Illumination type : LED Lamp
Illumination Power : 1 X max 3W
Auto Clean type : DRY, 3rd Generation
Autoclean Power : (W)80 W
Total Power : ( W )283 W
Suctuion : ( m3/h )1200±50m³/Hr
Noise Level : ( dBA)56 Db
Speed Control : 2
Switch Control : Touch Control
Outlet Diameter : (mm)160 mm
Unit Dimension(mm) : L750 X W380 X H835mm

BOOK DEMO NOW! CALL 9038728376

Kutchina Chimney KUTCHINA CHIMNEY MODEL : s & Specifications [Sales Support : 9038728376 / 9051666255]

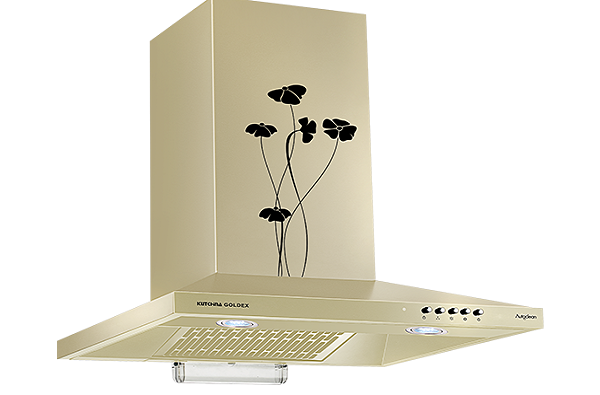

kutchina Goldex

KUTCHINA CHIMNEY MODEL : GOLDEX

Features

Layout: HOOD (2 ft)
Suction ( m3/h ):1000±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications

Layout : Hood (2 ft)
Body : MS
Size : 60 Cm
Voltage : (V)AC220-240V
Rated Motor Power : (W)1 X 250W
Illumination type : fluorescent Lamp
Illumination Power : 2 X max 15W
Auto Clean type : DRY, 3rd Generation
Autoclean Power : (W)75 W
Total Power : ( W )328 W
Suctuion : ( m3/h )1000±50m³/Hr
Noise Level : ( dBA)56 Db
Speed Control : 2
Switch Control : Push Button
Outlet Diameter : (mm)150 mm
Unit Dimension(mm) : L600 X W500 X H610mm

BOOK DEMO NOW! CALL 9038728376

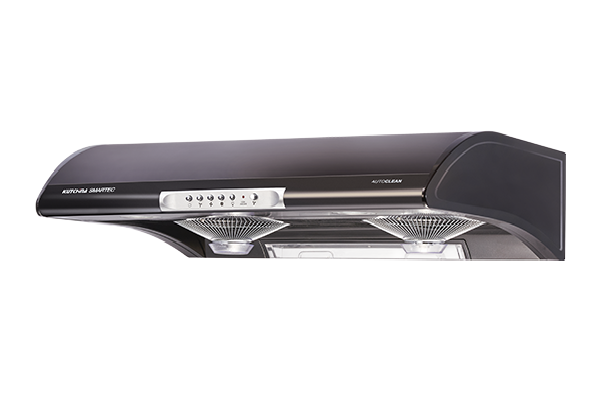

Kutchina Smartec

KUTCHINA CHIMNEY MODEL : SMARTEC

Features

Layout: HOOD (2.5 ft)
Suction ( m3/h ):1150±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications

Layout : Hood (2.5 ft)
Body : MS
Size : 76 Cm
Voltage : (V)AC220-240V
Rated Motor Power : (W)2 X 70W
Illumination type : LED Lamp
Illumination Power : 2 X max 2W
Auto Clean type : DRY, 3rd Generation
Autoclean Power : (W)160 W
Total Power : ( W )304 W
Suctuion : ( m3/h )1150±50m³/Hr
Noise Level : ( dBA)56 Db
Speed Control : 3
Switch Control : Push Button
Outlet Diameter : (mm)150 mm
Unit Dimension(mm) : L760 x W560 x H180mm

BOOK DEMO NOW! CALL 9038728376

Kutchina Vogue SS

KUTCHINA CHIMNEY MODEL : VOGUE SS

Features

Layout: HOOD (2.5 ft)
Suction ( m3/h ):1000±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications

Layout : Hood (2.5 ft)
Body : SS
Size : 76 Cm
Voltage : (V)AC220-240V
Rated Motor Power : (W)2 X 60W
Illumination type : Incandescent Lamp
Illumination Power : 1 X max 40W
Auto Clean type : DRY, 3rd Generation
Autoclean Power : (W)160 W
Total Power : ( W )320 W
Suctuion : ( m3/h )1000±50m³/Hr
Noise Level : ( dBA)56 Db
Speed Control : 3
Switch Control : Push Button
Outlet Diameter : (mm)150 mm
Unit Dimension(mm) : L760 X W560 X H200mm

BOOK DEMO NOW! CALL 9038728376

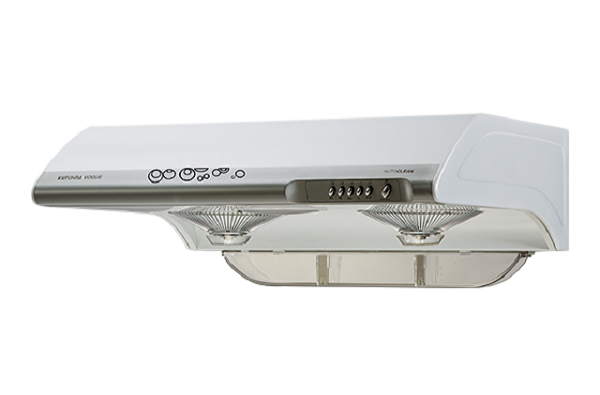

Kutchina Vogue

KUTCHINA CHIMNEY MODEL : VOGUE

Features

Layout: HOOD (2.5 ft)
Suction ( m3/h ):1000±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications

Layout : Hood (2.5 ft)
Body : MS
Size : 76 Cm
Voltage : (V)AC220-240V
Rated Motor Power : (W)2 X 60W
Illumination type : Incandescent Lamp
Illumination Power : 1 X max 40W
Auto Clean type : DRY, 3rd Generation
Autoclean Power : (W)160 W
Total Power : ( W )320 W
Suctuion : ( m3/h )1000±50m³/Hr
Noise Level : ( dBA)56 Db
Speed Control : 3
Switch Control : Push Button
Outlet Diameter : (mm)150 mm
Unit Dimension(mm) : L760 X W560 X H200mm

BOOK DEMO NOW! CALL 9038728376

Kutchina Chimney KUTCHINA CHIMNEY MODEL : s & Specifications [Sales Support : 9038728376 / 9051666255]

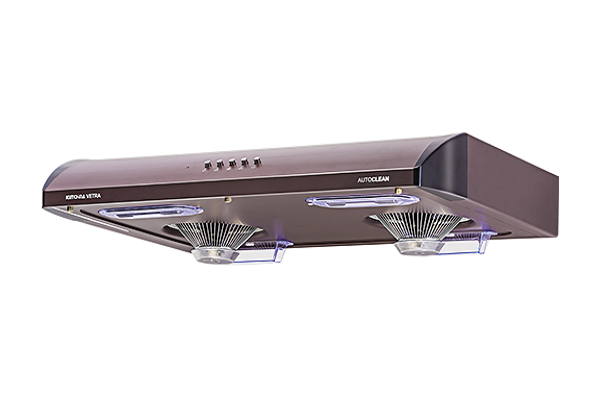

Kutchina Vetra

KUTCHINA CHIMNEY MODEL : VETRA

Features

Layout: HOOD (2.5 ft)
Suction ( m3/h ):800±50m³/Hr
Auto Clean type: DRY, 3rd Generation

Technical Specifications

Layout : Hood (2.5 ft)
Body : MS
Size : 71 Cm
Voltage : (V)AC220-240V
Rated Motor Power : (W)2 X 80W
Illumination type : Incandescent Lamp
Illumination Power : 2 X max 25W
Auto Clean type : DRY, 3rd Generation
Autoclean Power : (W)160 W
Total Power : ( W )370 W
Suctuion : ( m3/h )800±50m³/Hr
Noise Level : ( dBA)56 Db
Speed Control : 3
Switch Control : Push Button
Outlet Diameter : (mm)150 mm
Unit Dimension(mm) : L710 X W500 X H100mm

BOOK DEMO NOW! CALL 9038728376

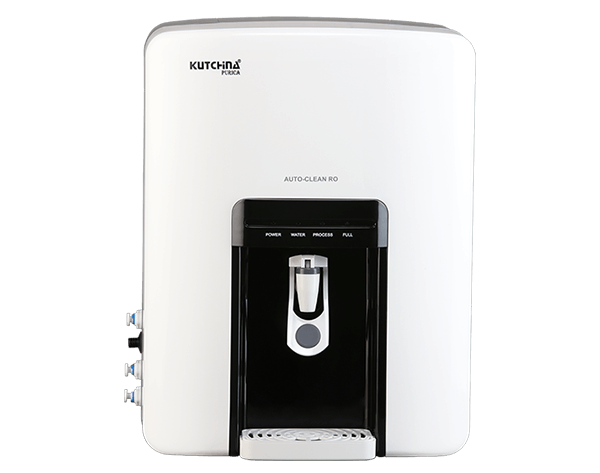

Kutchina Purica DLX

KUTCHINA PURICA DLX

Features

Installation Type: Wall Mounting
Body Matetrial: ABS Plastic
Product Dimension: 360x224x470 mm

Technical Specifications

Installation Type : Wall Mounting
Body Matetrial : ABS Plastic
Product Dimension : 360x224x470 mm
AC Mains : 230V - 50Hz
Storage Capacity : 7L
Purification Stages : 10
Power Consumption : 41W
Membrane Type : TFC
Water Inlet Pressure= 0.2 kg/cm?
TDS Reduction : 90-95%
Pump GPD70
Membrane GPD 75
Production Capacity : 7.8 - 15L/Hr
Indicator : Digital Display
Filter Service Alarm : YES
UV Service Alarm : YES
Purification Type : RO+UV+UF
TDS Controller : YES
Anti-Oxidant + Mineral : YES
Backwash : YES
Autoflush : YES

BOOK DEMO NOW! CALL 9038728376

Kutchina PUREDROP AO

KUTCHINA PUREDROP AO

Features

Installation Type: Wall Mounting
Body Matetrial: ABS Plastic
Product Dimension: 360x224x470 mm

Technical Specifications

Installation Type : Wall Mounting
Body Matetrial : ABS Plastic
Product Dimension : 360x224x470 mm
AC Mains : 230V - 50Hz
Storage Capacity : 7L
Purification Stages : 10
Power Consumption : 41W
Membrane Type : TFC
Water Inlet Pressure= 0.2 kg/cm?
TDS Reduction : 90-95%
Pump GPD70
Membrane GPD 75
Production Capacity : 7.8 - 15L/Hr
Indicator : Digital Display
Filter Service Alarm : YES
UV Service Alarm : YES
Purification Type : RO+UV+UF
TDS Controller : YES
Anti-Oxidant + Mineral : YES
Backwash : YES
Autoflush : YES

BOOK DEMO NOW! CALL 9038728376

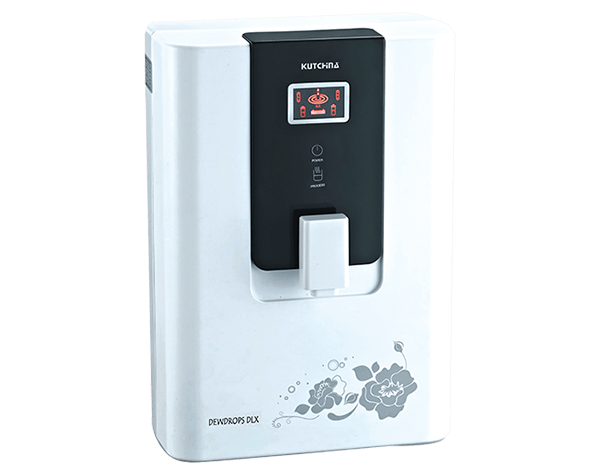

Kutchina DEWDROP DLX

KUTCHINA DEWDROP DLX

Features

Installation Type: Wall Mounting
Body Matetrial: ABS Plastic
Product Dimension: 280x185x400 mm

Technical Specifications

Installation Type : Wall Mounting
Body Matetrial : ABS Plastic
Product Dimension : 280x185x400 mm
AC Mains : 230V - 50Hz
Storage Capacity : 7L
Purification Stages : 3
Power Consumption : 41W
Membrane Type : TFC
Water Inlet Pressure= 0.2 kg/cm?
TDS Reduction : 90-95%
Pump GPD70
Membrane GPD 75
Production Capacity : 7.8 - 15L/Hr
Indicator : Digital Display
Filter Service Alarm : YES
UV Service Alarm : YES
Purification Type : RO+UV+UF
TDS Controller : YES
Anti-Oxidant + Mineral : YES
Backwash : YES
Autoflush : YES

BOOK DEMO NOW! CALL 9038728376

Kutchina Chimney KUTCHINA CHIMNEY MODEL : s & Specifications [Sales Support : 9038728376 / 9051666255]
